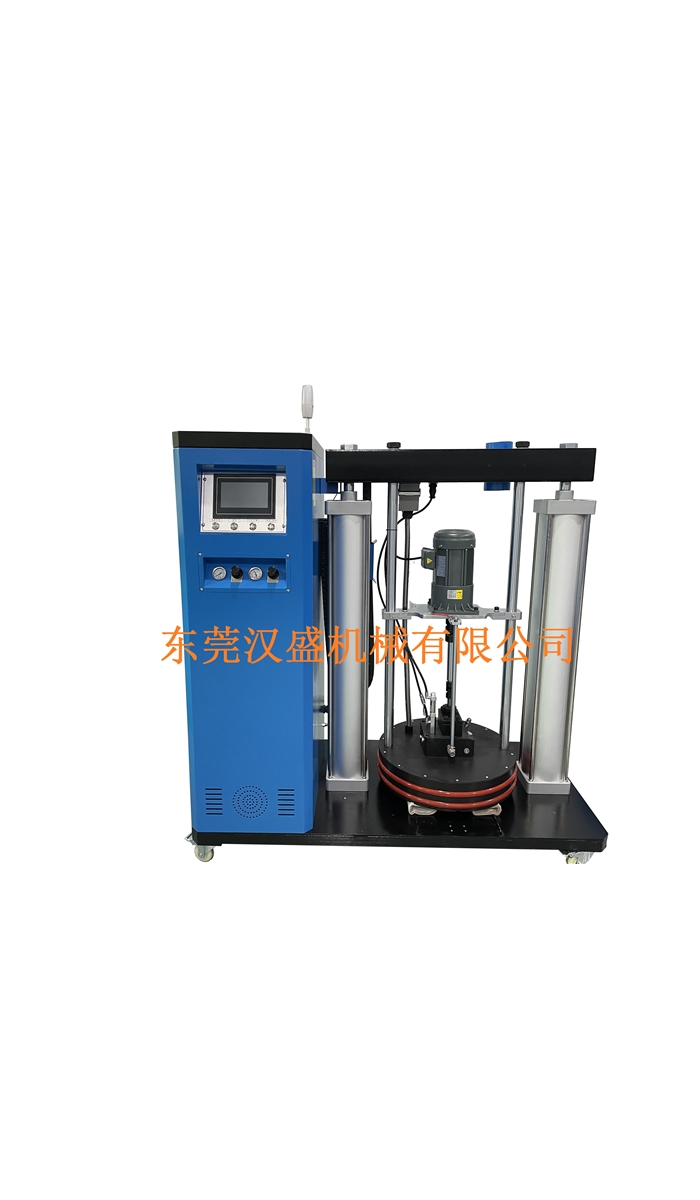

HS-PUR55 hot melt glue machine
HS-PUR55 hot melt glue machine
55 gallons of moisture reaction type PUR platen hot melt glue machine product specifications:
PUR glue supply control mode: inverter-driven speed regulating AC motor drives the gear pump to supply glue
PUR glue machine pump body quantity: 1
Melting machine pump body type: gear pump
Maximum motor speed: 125
Maximum glue supply of PUR glue machine: 200kg/H
Platen heating mode: optional depth of heating groove 50mm/100mm
Maximum melting speed: 100KG-160KG (under the use temperature of cps in the case of 10000)
Number of pump bodies: 1
Maximum viscosity: 100,000CPS
Number of hoses that can be connected: 2 way, 4 way,
Maximum working pressure: 70Mpa
Working temperature range: normal temperature -250℃
Operating environment temperature range: -20-50℃
Temperature control accuracy: ±1℃
Temperature sensor: Pt100/K type thermocouple
Power supply for PUR glue machine: 220V/50Hz and 380V3P+N
Heating plate power: 15.5KW
Air pressure for spraying: 0.1～0.8Mpa
PUR glue machine weight: about 350kg
PUR glue machine installation size: 1680mm×1050mm×2750mm (the height of the PUR heating plate ascending)
Features of 55 gallon moisture reaction type PUR platen hot melt glue machine:
1. The 55-gallon moisture-reactive PUR platen hot melt adhesive machine is equipped with a temperature control meter to control the temperature of the system, saving customer costs. The polyurethane PUR hot melt adhesive machine has multi-stage temperature control, and the temperature control is accurate to plus or minus 1 degrees Celsius, PUR The internal electrical and mechanical protection functions of the hot melt adhesive machine are complete, the upper and lower limit alarm settings of the polyurethane hot melt adhesive sol temperature, the hot melt adhesive machine temperature sensor damage alarm, the PUR hot melt adhesive machine heater damage alarm, precise and stable control of the polyurethane hot melt The work of the glue machine.
2. The 55-gallon pur hot melt glue machine adopts light touch button operation, the man-machine interface is simple and friendly, and the PUR hot melt glue machine can be operated without complicated training.
3. The 55-gallon barrel PUR polyurethane hot melt glue machine uses a precision metering pump to pump glue. The PUR hot melt glue machine is equipped with a motor speed curve setting and multi-stage PUR glue machine equipment protection. When the temperature of the PUR polyurethane hot melt glue machine heating plate is not When the temperature set by the system is reached, the main motor of the PUR polyurethane hot melt adhesive machine will not run to prevent damage to the pump body or motor caused by forced operation.
4. The 55-gallon pur hot melt glue machine is equipped with independent pressure control system for each throat. The PUR polyurethane hot melt glue machine adopts the standard 2-way hot melt glue hose and hose output, and reserves two glue supply hose configurations, which can be expanded Provide glue dispensing for 4-way PUR hot melt adhesive.
5. 55-gallon PUR hot-melt glue tank glue level detection and alarm function. PUR hot-melt glue machine has intelligent fault location and other functions. PUR hot-melt glue machine spraying equipment is suitable for PUR hot-melt glue spraying. International standard 55 gallon barrels When installing PUR hot melt adhesive.
6. Glue position indication function of PUR pressure plate hot melt glue machine: a unique glue quantity reminder function is designed in the 55 gallon PUR hot melt glue machine system, with green, yellow and red glue quantity indicator lights, and an electronic alarm system , Promptly and accurately let you know the remaining amount of PUR glue in the glue et, and there will be a separate prompt system when the PUR hot melt glue in the glue et is used up.
7. The surface of the heating disc of the moisture-reactive platen polyurethane PUR hot melt adhesive machine is treated with multi-layer Teflon, and the sealing ring of the melt disc of the PUR hot melt adhesive machine is made of DuPont perfluoro rubber. The highest temperature resistance reaches 300℃, corrosion resistance and high temperature resistance. It can effectively prevent any substance from sticking. It is easy to clean. It is suitable for two barrels of PUR hot melt adhesive in international standards. It can be used without changing the melt tray.
8. The special gluing device for PUR reactive hot melt adhesive machine applies reactive PUR polyurethane hot melt adhesive or ordinary hot melt adhesive EVA to the product using special precision hot melt adhesive scraper, spray gun, glue gun and other modules. The glue is uniform, the amount of glue can be accurately controlled, the glue is saved, and the best effect can be achieved. It is especially suitable for profile sizing with large output, high quality requirements and difficult coating.
9. The 55-gallon pur hot melt glue machine adopts European design standards and the introduction of internationally advanced polyurethane glue machine design concepts. Various safety standards are designed in accordance with EU standards. The safety is high. The 55-gallon pur glue machine can be used with a variety of spray modules. , A variety of devices are precisely coordinated to meet the gluing requirements of the rapid development of new technology and new materials.
10. The melt tray of the polyurethane hot melt glue machine uses an integrated modular design, which is easy to clean. It can be equipped with different polyurethane melt pressure pans at the same time. The same PUR hot melt glue machine can be used for arc-shaped heating trays and multiple hollow tubes. Heating plate, etc.
11. Intelligent heat preservation and dormancy function of PUR hot melt glue machine, when there is no need to work for a long time, such as lunch break, only need to start heat preservation and dormancy function, without turning off the hot melt glue machine power to effectively reduce the reheating time, and effectively save energy consumption and reduce standby Time and save energy.
12. Hansheng moisture-reactive polyurethane PUR hot melt glue machine adopts a pilot flow valve to accelerate the reaction, which effectively improves the pumping speed of the polyurethane pressure plate hot melt glue machine.
13. The 55-gallon PUR hot-melt glue machine uses a patented automatic positioning and alignment mechanism for the rubber barrel. No complicated alignment work is required when replacing the 55-gallon polyurethane hot-melt glue barrel. The glue change is simple and fast, and the PUR glue machine is easy to take off the barrel.
The 14-55-gallon PUR polyurethane hot melt glue machine is equipped with abundant external interfaces, which can cooperate with the robot arm to automatically glue the work, and can realize the joint control of multiple equipment and computer connection.
Applications: Woodworking cladding and laminating, textile fabric composite, PET transparent boxes, automotive interior parts, car lights, book binding, household appliances assembly and other industries.
